Tan Delta Tester

KPM TD-12 is a simple and robust equipment for PF/DF measurements of -:

  • Power transformers

  • Rotating machines

  • Current transformers

  • Voltage transformers

  • High-voltage (HV) cables

  • Gas-insulated switchgear (GIS) systems

KPM TD-12 with the help of its special design is capable of conducting Tan Delta Testing in highly charged substation environment upto 765KV.


Few key points

  • Testing @10KV/12KV with 0.1KV increment

  • Freq @45HZ/55HZ ,  47.5HZ/52.5HZ, 55HZ/65HZ,    57.5HZ/62.5HZ, Automatic double frequency

  • Powerful unit of 2000VA

  • The instrument has many protection measures, such as input voltage fluctuation, output short circuit, over voltage, over current and over temperature.

KPM TD 12 with the help of Optional accessories is capable of testing Tan delta of -:

  • Transformer Oil with the help of Oil Test Cell

  • Generators with high capacitance .

Please feel free to contact for details .

KPM 5KP+.png

IR Tester  KPM-5KP+
(5KV,10KV,15KV, 20KV series)

KPM-5KP+ is a robust IR tester with excellent noise reduction circuitry. KPM-5KP+ Tester is having a user selectable voltage ranges  50V, 100V, 250V, 500V, 1.0kV, 2.5kV, 5.0kV.  It is suitable for measuring insulation of switchgears, panels, ct/pt, generators, high voltage electric motors, power capacitors, power cables, surge arresters and other ideal insulation resistance test equipment.

Key features-:

  • PI/DAR facility

  • Short Ckt Current >5ma

  • Auto- discharge function to make, the operation safe.

  • Inbuilt temperature & humidity sensor.

  • Advance “Guard” Feature for accurate measurements

  • Live circuit warning symbols with audio sounds.

  • Suitable for working on 12V DC adapter (12V/1A) or internal battery

  • Onboard Printer (Optional )

Also available in 10KV , 15 KV & 20KV variants .

KPM OBD 100+.png

OIL BDV Test Kit

As the name suggests, Oil BDV Test Set (KPM-OBD80/100+) is used for measuring breakdown strength of the insulating oil.

  • Capable of generating 80/100KV with onboard printer.

  • Motorized & programmed stirrer

  • Light Weight

  • 5KV/sec voltage rise with automatic test plans as per IEC & IS

  • 0.5KV/sec to 5KV/sec variable voltage rise as per ASTM Standards ( available in "A+"  models)

KPM TWRT 20A.png

Transformer Winding Resistance Tester (1 Phase)

KPM offers a complete line of transformer testing equipment The KPM TWRT Series can be classified in terms of below models

TWRT-2A      ( 2A , 1 Phase Testing )

TWRT-10A    ( 10A , 1 Phase Testing )

TWRT-20A    ( 20A , 1 Phase Testing )

TWRT-40A    ( 40A , 1 Phase Testing )

TWRT-20  ( 40A , 1 Phase Testing & 20A, 3Phase Testing )


KPM 5KP.png

IR Tester

KPM-5KP is an easy to use 5KV IR Tester with user selectable voltage ranges  500V,1000V,2500V,5000V.  It is suitable for measuring insulation of switchgears, panels, ct/pt, generators, high voltage electric motors, power capacitors, power cables, surge arresters and other ideal insulation resistance test equipment.

Key features-:


  • PI/DAR facility

  • Short Ckt Current <1ma

  • Auto- discharge function to make, the operation safe.

  • Advance “Guard” Feature for accurate measurements

  • Live circuit warning symbols with audio sounds.

  • Suitable for working 12V DC adapter (12V/1A) or internal battery

KPM TTR3.png

Turns Ratio Tester

KPM-TTR3 is a three phase transformer ratio tester used to measure the voltage ratio of 3 or 1 phase transformer. All the data and test results are showed on a 320*240 LCD. All the test results can be printed onsite by the micro printer . KPM-TTR3 is having a inbuilt memory to save the test results . Advance Noise Reduction circuitry makes KPM-TTR3 an ideal equipment for field conditions.

KPM CT PT Analyzer.png

Transformer Bushing CT

KPM-CT/PT Analyzer is an all in one solution for testing all type of CT/PT as per IEC standards. It is an equipment with high ROI ( Return On Investment ) . Below features  make  KPM CT/PT analyzer  and ideal tool for  CT/PT Manufacturer , Testing labs , Substations (Upto 765KV) , Power  Plants  etc.

Now a days many power utilities expect the power transformer manufacturers to conduct the testing of Bushing CT in the fully assembled condition. Since the primary terminals of bushing CT are not directly available ,testing is not possible with the primary current injection method. This test can be easily conducted by CT/PT Analyzer .


SFRA 01 & SFRA+

Power transformer is an important electrical equipment, its safe and reliable operation is extremely important for power systems.


KPM SFRA+ is developed for testing the mechanical and electrical integrity of power transformers after transportation or exposure to high fault currents. It uses the

  • SFRA principle (Sweep Frequency Response Analysis)

  • Sht. Ckt. Impedance method

& measures the electrical transfer function over a wide range of frequencies.

* SFRA 01 is not having Sht. Ckt. Impedance Testing  facility

Video - Power Transformer Testing

Video - Power Transformer Testing
765KV live switchyard ,Tan Delta Testing of Grading Capacitors

765KV live switchyard ,Tan Delta Testing of Grading Capacitors

Play Video

Theory - Power Transformer Testing

Theory Power Transformer Testing

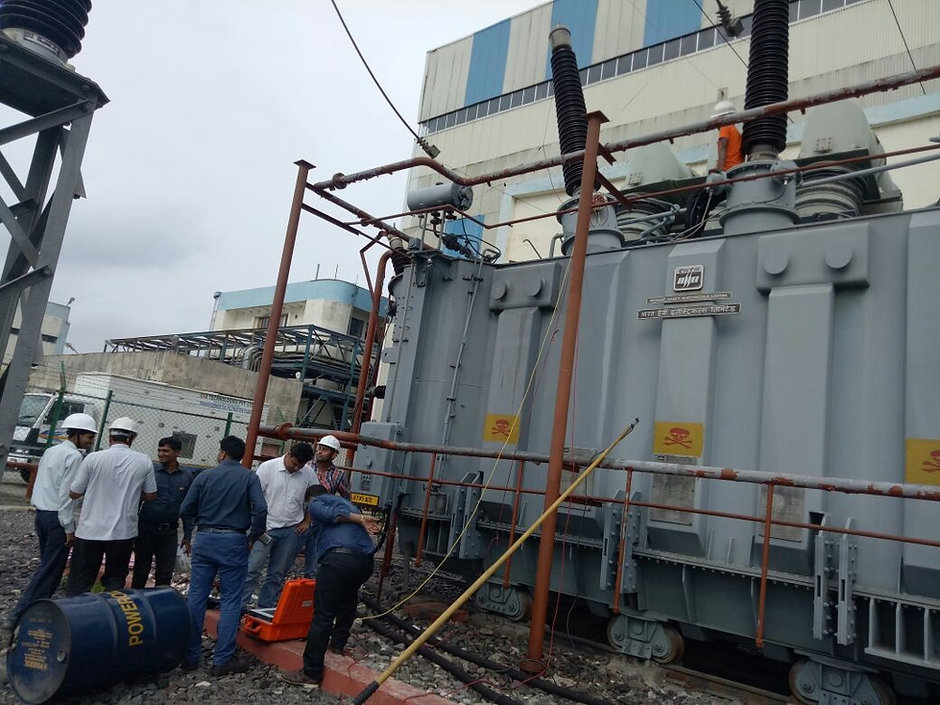

KPM CT_PT Analyzer , Generator Transform

High-voltage transformers are some of the most important (and expensive) pieces of equipment required for operating a power system. There are a multitude of checks and tests performed as transformer is assembled at the substation. The test engineer may not directly perform all the following tests and inspections but must be sure they are satisfactorily completed to take a  final decision over transformer bank readiness to be energized.

  • IR Testing

  • Capacitance & Tan Delta

  • Transformer Winding Resistance Tester

  • Transformer Turns Ratio

  • Magnetic Balance Test of Transformer

  • Magnetizing Current Test of Transformer

  • Vector Group Test of Transformer

  • Temperature Rise of Transformer

  • Tap Changer Testing

  • SFRA – Sweep Frequency Response Analyzer

  • Transformer Bushing CT Testing .

Frequently Asked Questions ( FAQ )

  • What is a relay test kit ?
    A relay test kit is an equipment which is used for testing different type of relays. Relay test kit is a combination of programmable current and voltage sources and a timer . During relay testing Relay test kit injects fault in the relay (in form of CT & PT ) and measures the tripping time or reaction time of the relay. If the behaviour of the relay is as per its settings then the relay pass the test else relay fails the test .
  • Why automatic relay test kits are preferred over traditional ( variac based ) relay test kits ?
    Automatic relay test kits have various advantages over traditional kids 1. Signal Stability : The output the current and voltage output of automatic relay test kit is not proportional to its input power supply it means the current and voltage output of relay test kit are getting supply from analogue to digital and then digital to analogue conversion backed with a feedback loop hence the output signals off relay test kit are not dependent on its input power supply . Automatic Relay Test Kit output are stable even if there's there is some minor instability in the input power supply 2. Accuracy , Resolution and functionality : With automatic relay test kits user can vary phase frequency and magnitude of all current and voltage signal independently with very high resolution and accuracy. This is not possible in traditional secondary injection kits which can increase or vary only magnitude ( V or I ) with the help of manual variac.
  • What is a numerical relay test kit?
    Numerical relay test kit is an another name for automatic or microprocessor based relay test kits . Numerical relays generally high accuracy which can be tested with highly accurate automatic relay test kits
  • What is a universal relay test kit ?
    Universal Relay Test Kit is another name for automatic relay test kits as user can vary phase , frequency and magnitude of the current and voltage sources independently and generate any type of fault .
  • What is 6 Phase relay Test Kit , when there is only 3 phase CT or PT in power system ?"
    Many customers are confused with the notation of 6 phase relay test kit . The high end relay test kits have six current sources whose phase frequency and magnitude can be varied independently . These 6 current sources are very useful in testing a differential relays.
  • What is need of advance software with Automatic Relay Test Kits ?
    As we know that each fault is generated due to variation of Phase, frequency or magnitude in CT or PT signal , Few fault simulations are not very simple ( like testing Quadrilateral characteristics of Distance Relays ) . Advance software are very useful in simulating complex faults . Kingsine User gets all in one advance software in their standard purchase .
  • Why high current and voltage amplifiers are desirable in relay test kits
    It is truly said that Current and Voltage sources are the soul of relay test kit . High current and voltage signal is useful in below ways For testing 5A Over Current Relays at 10 Times , we have to inject 3X50A , which is possible with high current relay Test Kits With higher current we can test a differential relay at higher point of BIAS Curve . With higher Currents we can simulate higher faults in Transient Fault Playback . Kingsine Test Kits have the highest Current Rating sources of 0 to 35A each ( @450VA ) and 0 to 300V each ( 124 VA )
  • Why high power amplifiers are desirable in relay test kits ?
    Relay Test Kits with high power amplifiers are preferred as high power is required for testing the electromechanical relays . Also if a relay test kit is having higher power rating then its duty cycle for lower power rating is high hence more rugged design . Kingsine is having most powerful current sources of 480VA ( @35A ) each and most powerful voltage sources of 124VA ( @310V ) each
  • What is more important , Advance software or powerful hardware in selecting an automatic relay test kit ?"
    A powerful hardware is most important for long time robustness of a relay test kit, Few application needs high powered sources also . An advance software is a tool which helps user to test even most complex relays in the easiest way . Hence in today’s scenario relay test kit shall be a combination of high rated sources and advance software . K3063i is a good combination for both
  • Why Kingsine relay test kits have highest power rating in market ?
    In Kingsine each current Source is of 480VA @35A and Voltage Source is 124VA@310V , hence highest in the market .
  • Why Kingsine K3063i is the best combination of power and accuracy ?
    K3063i is having high powered voltage and current source ( current Source is of 480VA @35A and Voltage Source is 124VA@310V) while it is having current range of 3 A, which leads to very high accuracy in lower currents .
  • Whom to contact for any KPM’s test equipment support  ?
    Feel free to contact our Technical Consultant on for any queries .
  • Where is the service centre of Kingsine relay test kits located in INDIA ?
    We have an advance service center in Gurgaon, Haryana with 100% spare availability .
  • What is df/dt relay , Can I test it using Kingsine Relay Test Kits ?"
    Rate of Change of Frequency (ROCOF or df/dt) relay is used for fast load shedding, to speed up operation time in over- and under-frequency situations and to detect loss of grid. ROCOF or df/dt relays are particularly effective in arresting the frequency collapse of a grid in the event of sudden loss of major generation. This is because by measuring the frequency decay rate, the corrective action can be initiated much ahead of the time when frequency of the synchronous interconnection would have actually dipped to a point at which generator under-frequency relays or unit auxiliaries would trip / operate leading to a complete system shutdown. The df/dt is used for load shedding in situations where sudden loss of generating capacity on a system will be accompanied by a decrease in system frequency. In such a situation of load Generation mismatch, the system frequency tends to fall. The df/dt relay can control the circuit breakers and allow feeders to be disconnected from the network, one by one. In Kingsine Software there is a specialised module for testing of df/dt
  • What is distance relay , Which relay test kits can test these relays ?"
    A Distance relay / impedance relay is a voltage restrained overcurrent relay. The relay measures impedance up to the point of fault and gives tripping command if this impedance is less than the relay setting Z. Relay setting Z is known as replica impedance and it is proportional to the set impedance i.e. impedance up to the reach of the relay. The relay monitors continuously the line current I through CT and the bus voltage V through PT and operates when the V/I ratio falls below the set value. In Kingsine both K68i & K3063i have specialised modules for testing of distance relays .
  • Why high power relay test kit is required for testing a electromechanical relays
    Electromechanical relays have high impedance coils , during testing relay test kit has to inject current via coils of high impedance hence high burden is required . Kingsine kits have highest burden hence ideal for testing all type of relays .
  • What is advance Transient playback function of automatic relay test kit ?
    Now a days all advance relays comes with a fault recorder function . Whenever fault strikes this fault file gets saved in relay in form of .cfg / comtrade file . Relay test kit have the feature to import this file in its software and replay the file using its current and voltage sources . This is called as Transient playback feature.
  • What are the precaution with connections to kept in mind while operating relay test kit ?
    Few of the site precautions are -: All the CT and PT terminals which are to be connected to relay test kit shall not be live . Earthing shall always be connected to the kit . During testing high current surge equipment such as welding sets shall be avoided in the same power supply circuit of relay test kit . Always work as per relevant local or international standard of testing .
  • What type of protection features are existing there in Kingsine Automatic Relay Test Kits ?
    Kingsine Relay Test Kits have below protections Short Circuit protection got Voltage Amplifiers Open circuit Protection for current amplifiers Over Heat Protection . Health Earth Indication etc.
  • I want to test Differential Relays which type of relay test kit is more suitable for me ?
