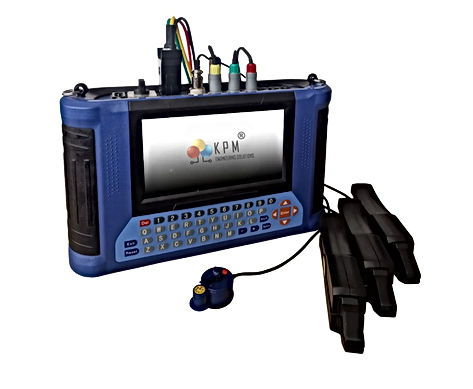

- KPM MT 3000D+ portable three phase reference standard meter is used for the field test of the three phase or single phase energy meters and electrical parameters of the circuit by electric power companies, meter manufacturing companies and institutes of metrology.
Features :
- Simultaneously measure full wave, fundamental wave and harmonic.
- Combined use of touch screen and keyboard.
- Two ways to measure current: 12A terminals and clamp CT (5A, 100A, 500A or 1000A CCT).
- There are 7 built-in error measurement modes, including: full wave active / reactive / apparent power, fundamental wave active / reactive / apparent power and harmonic active power.
- Two error measurement channels, can test the error of 2 meters simultaneously.
- Display vector diagram.
- Display waveform of voltage and current.
- Analyze and display 2nd – 51st harmonic of voltage and current at real time.
- Energy accumulating test (Dial test) .
- Test ratio of current transformer in low voltage circuit.
- Automatic check for correct external wiring.
- Screen copy and storage.
- Real time clock, accurately record testing time.
- Large capacity built-in memory, can save 5000 sets of measurement data.
- Store, browse and transfer measured data .
- Three kinds of power supply: external AC power, voltage test lead power and internal rechargeable battery power.
