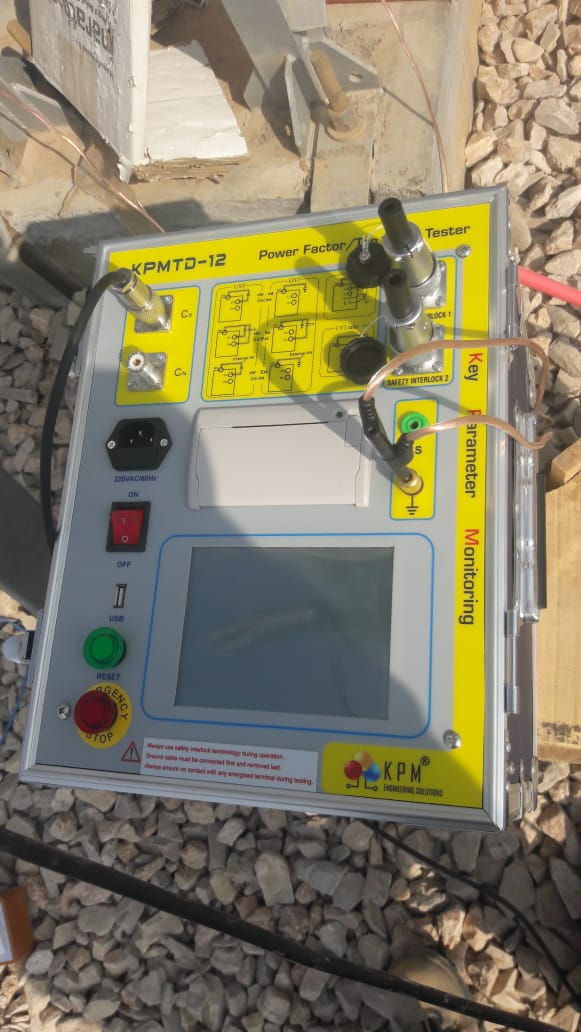

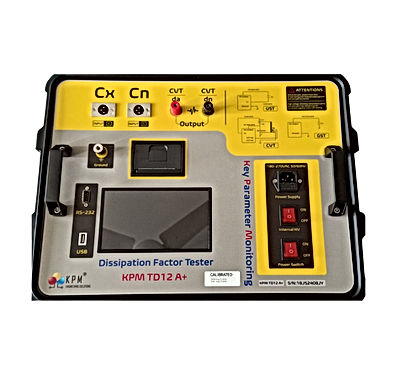

KPM TD 12A+

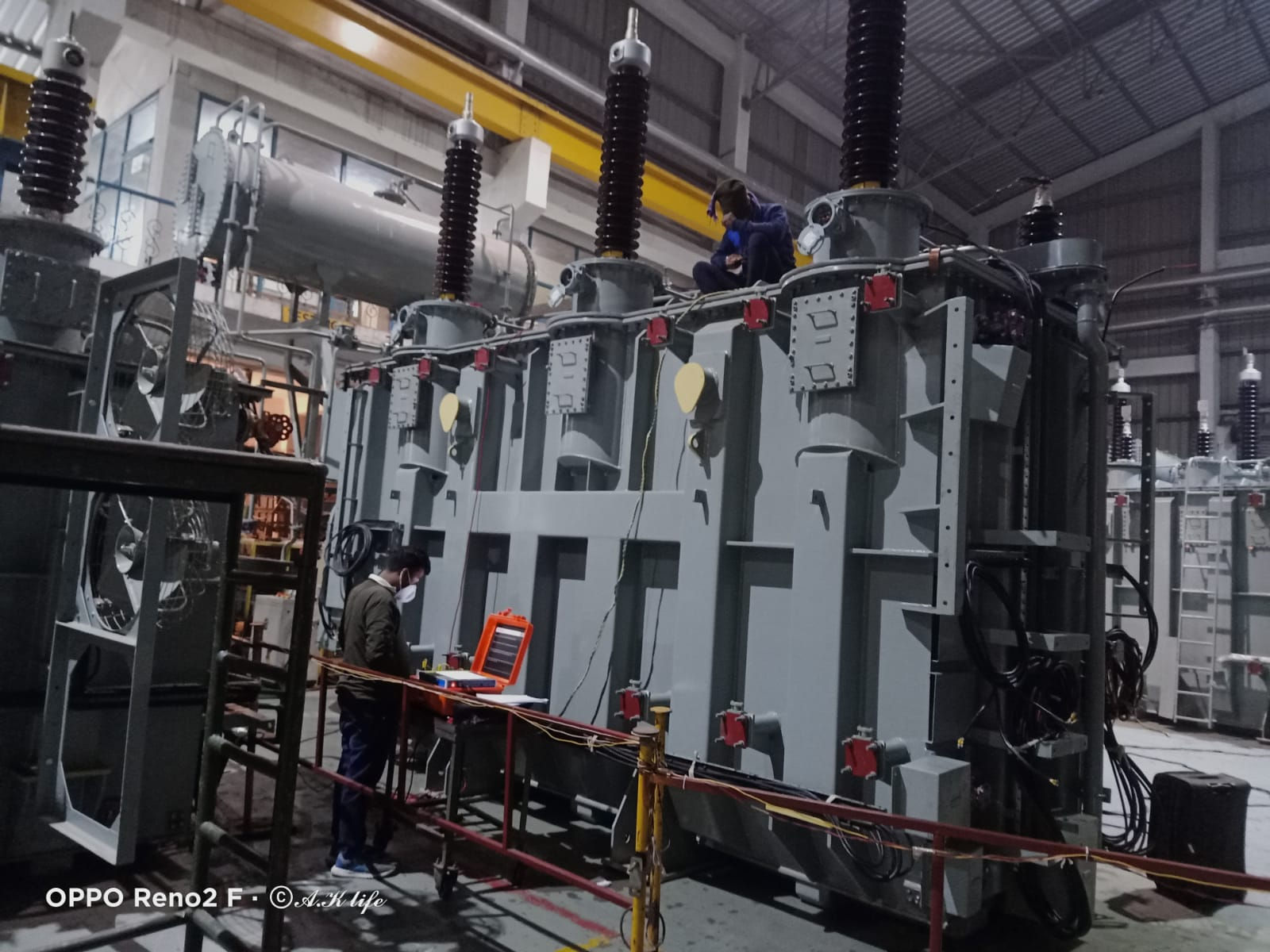

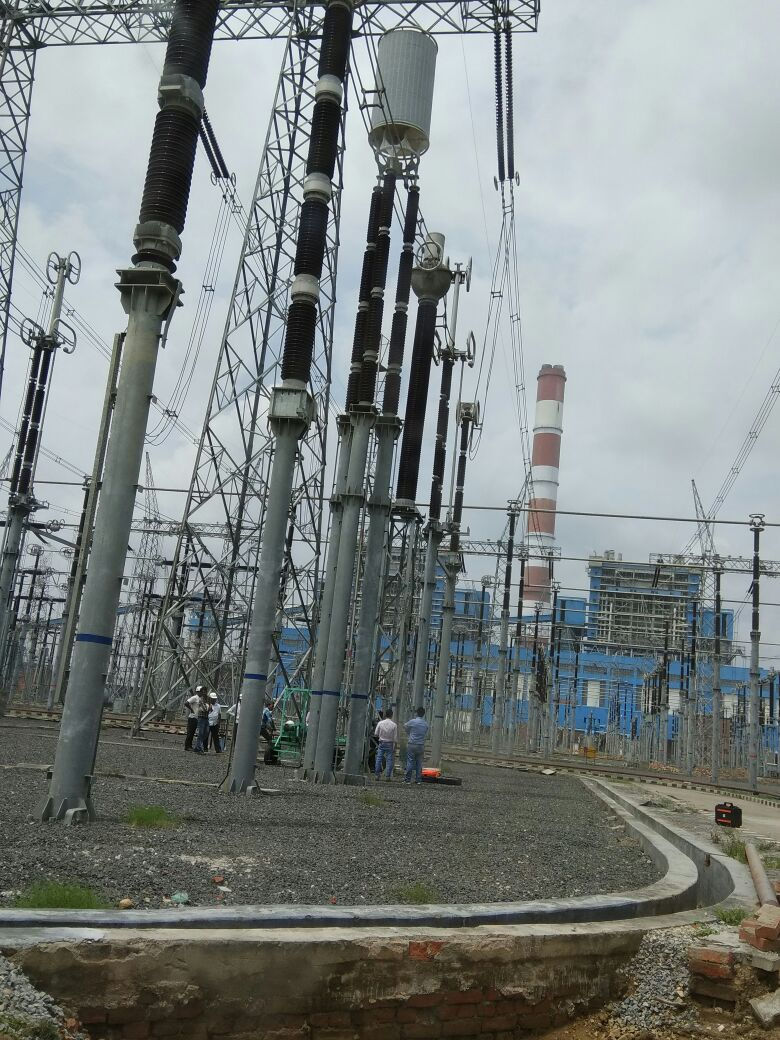

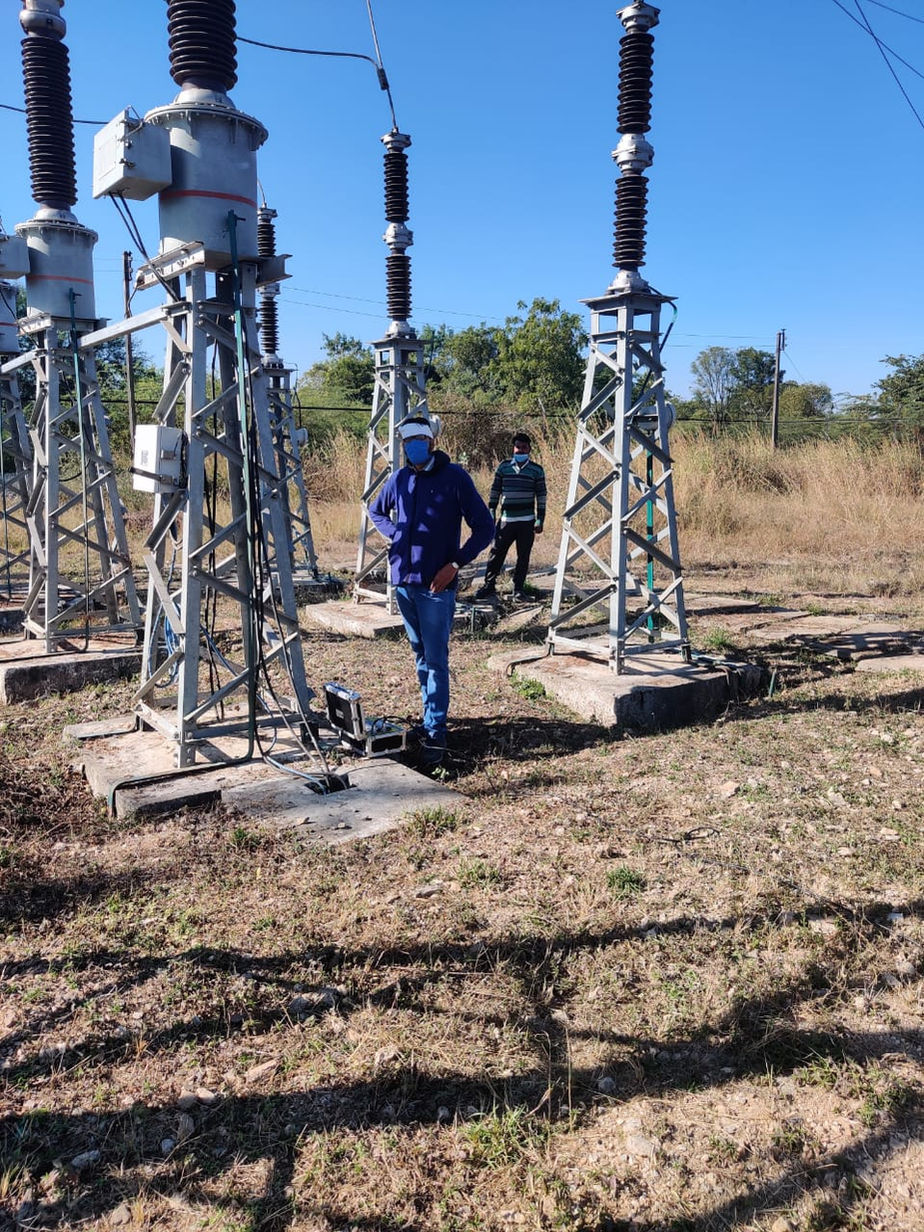

KPM-TD12 A+ Automatic 12KV Capacitance & Dissipation Factor Test Set is used to measure the dissipation factor (PF) of insulating materials in heavy interference sites such as power plants or power substations. It can also be used in laboratory for high accuracy capacitance and dissipation measurement.

- KPM-TD12 A+, Automatic 12KV Capacitance & Dissipation Factor Test Set is used to measure dissipation factor (PF) in heavy interference site such as power plants or power substations. It can also be used in laboratory for high accuracy test.

- The set is whole in one designed: including precision digital bridge, power unit, reference capacitor (CN), step-up transformer and other electronic circuits.

- It is using frequency shift technology, FFT (Fast Fourier Transform algorithm) and digital filtering.

- Multi safety protection to ensure the users and equipment
1.High voltage protection.
2.Ground detection.
3.Double protection : two-stage power switch power switch and internal high voltage switch.
4.High voltage output real-time warning symbol and beeps.
5.High voltage cable: heavy double shielded insulated HV cable.

- HD color touch screen
Easy to operate

- Internal thermal printer
Allows you to quickly get your results on paper by using the built-in thermal printer.

- Internal memory with time and date stamp up to 1000 data.

- Internal memory with time and date stamp up to 1000 data.

- USB interface : The USB port can support data transfer to a USB stick.

- PC software : Users can use laptop to control instrument operation and get test reports.

- All-in-one and lightweight : One piece unit only weighting 25.8kg.
