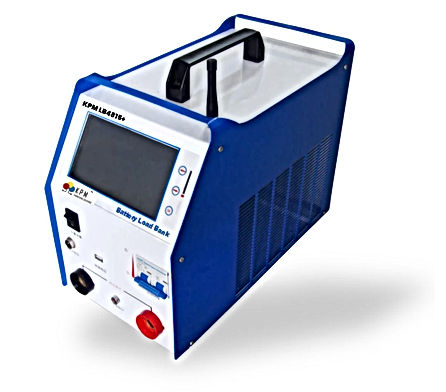

KPM LB4815+

Battery Discharge Kit

Although battery resistance testing methods are improving and very popular, battery discharge test still is the most accurate and reliable method for actual capacity evaluation of battery groups. Because only constant current discharge can perfectly simulate the working status under loading for batteries, power supply departments in many companies and utilities keep the periodic discharge testing in their maintenance management.
Because the DC power systems in various industrial utilities are using different voltage level battery groups (24V, 48V, 110V, 120V, 220V, 240V etc.), and most of the professional users hope to find an unattended and automatic instrument to simplify discharge process, the battery discharge tester with intelligent designs and super voltage variability for almost all battery types would be preferable.

Features:
- Wide voltage range battery discharger: 12 V to 240 V.
- 7 inch LCD touch screen for easy operation and showing various parameters real time.
- Selectable discharge mode: constant current / power / resistance.
- 4 adjustable stop points and multiple alarm designs to control the discharge process intelligently.
- Emergency Stop Button for Stopping Discharge Immediately.
- Support RS485 real time monitoring by PC or USB download data after discharge.
- PC software for capacity evaluation and report generation.
- Optional wireless modules for 1.2V/2V/6V/12V cells voltage real-time measuring.
