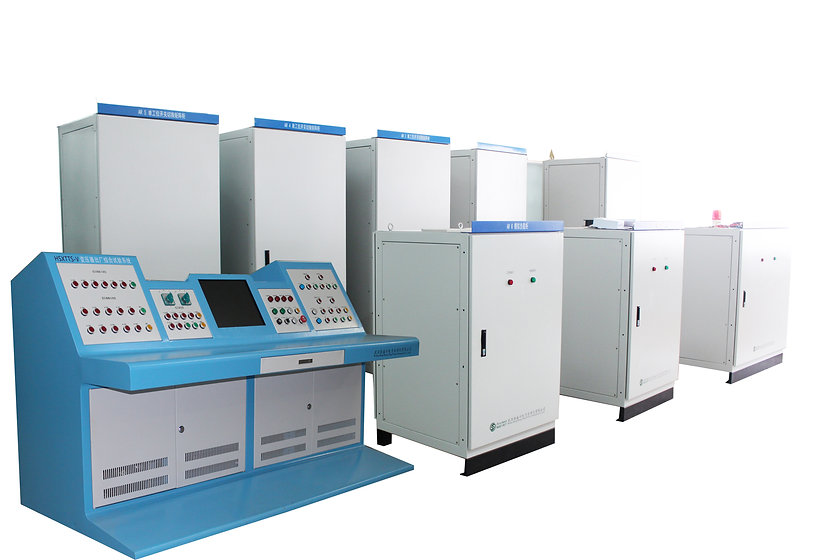

Transformer Test Bench

Customised solutions for

  • System test project

  • No-load characteristic test of transformer;

  • Load characteristic test of transformer;

  • Transformer power frequency AC withstand voltage test;

  • Frequency doubling AC withstand voltage test of transformer;

  • Transformer DC resistance test;

  • Transformer ratio, group and error test;

  • Transformer temperature rise test;

  • Partial Discharge Measurement of Transformer;

  • Extra System Assisted Test Project

  • Transformer insulation resistance, absorption ratio,

  • Polarization index test;

  • Transformer insulation oil analysis system;

  • Transformer dielectric loss test;

  • Environmental temperature and humidity test.

Dist. Transformer Test Bench

  • Distribution transformers are "mass production equipment"; high testing-throughput is a must without compromising quality. KPM's DTTS aims at a highly automated test procedure using well-prepared sequences and minimal manual intervention to keep the test duration of a single transformer as short as possible and to avoid human errors.

  • State of the art frequency converter

  • Powerful operating software with intuitive interface and automated test sequences. It is a multifunctional tool, including all routine tests and the heat run test within one unique system . All supported tests are performed in conformity with IEC.

  • The highest accuracy and the only completely calibrated and certified measurement system

  • The lowest system-noise level allowing highly sensitive Partial Discharge measurements
